heavy duty semi low bed trailer for sale

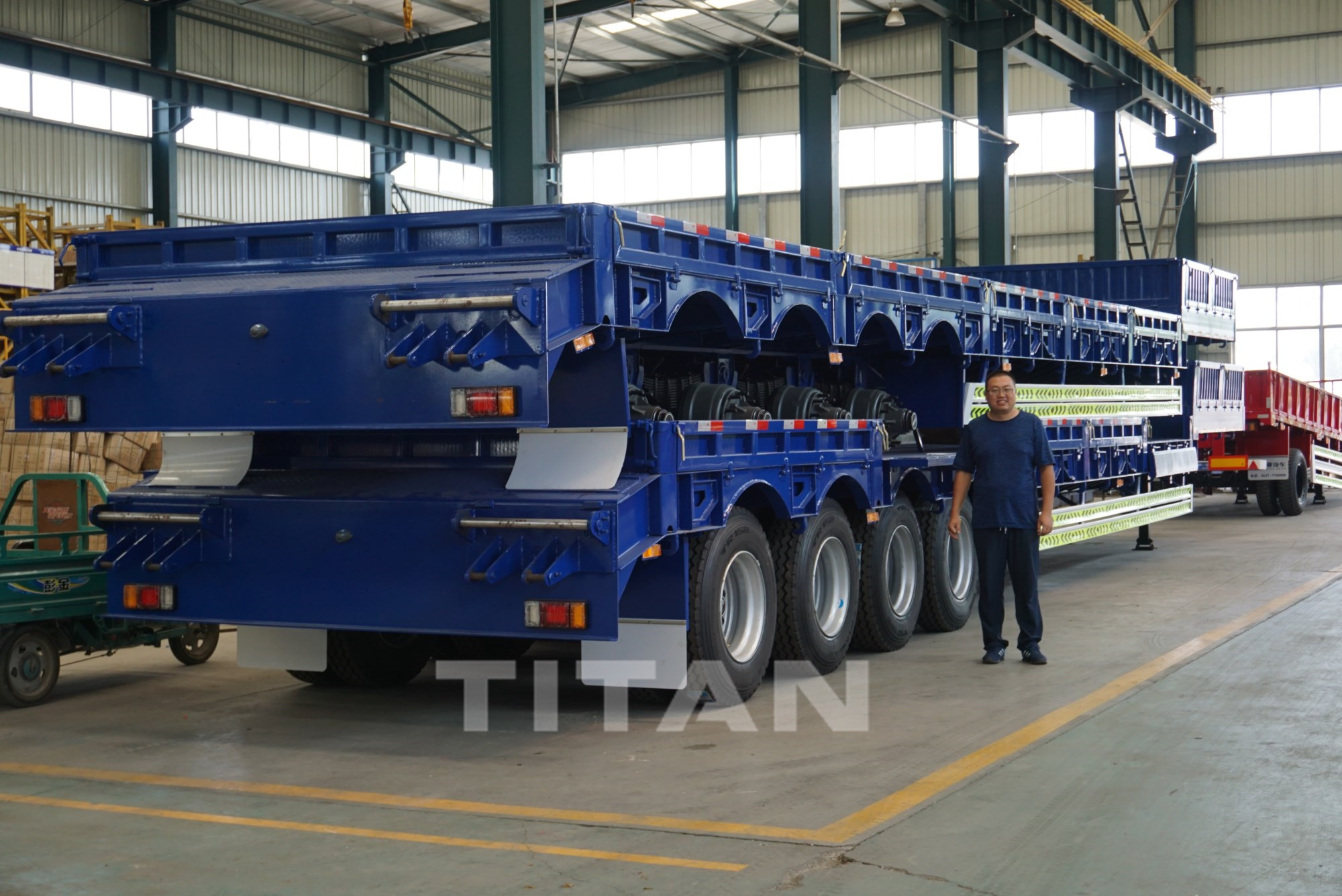

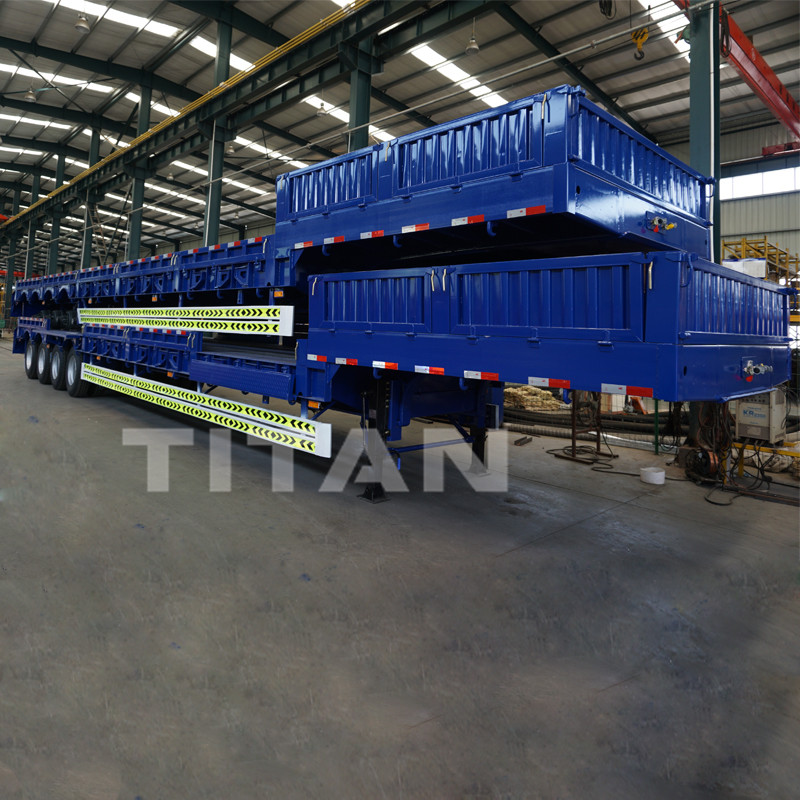

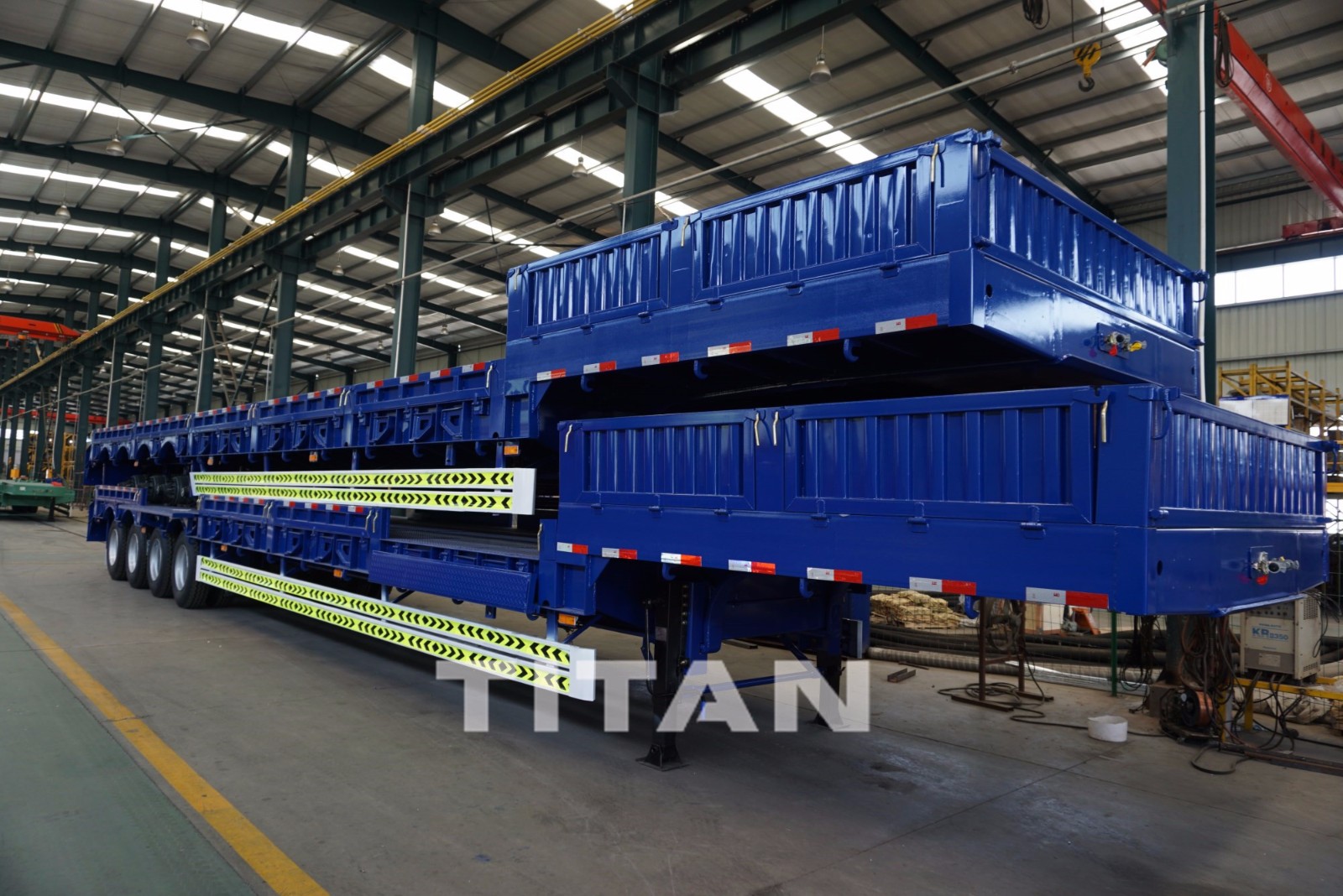

Heavy duty semi low bed trailer with side wall

Our semi lowbed with side wall is generally used for carrying 100~120 Tons capacity loads. These 4 axle lowbed can be both platform and pool type and we have a flexibility on the specifications. We have different options to solve your load problem. With our technical team we can manufacture high quality 4 axle lowbed.

The total length : 15800~16000 mm varies according to demand.

Total Width: 2550 mm – 3300 mm varies according to demand.

Optional :

Hydraulic ramp is an option for loading and unloading

Air suspension or Bogie suspension

Self Steering or hydraulic steering axles

Side bracket is an optional for increasing overall width

Detachable gooseneck is an option.

Paint :

First ,Sandblasting for tank ,then anti-rust chassis surface, one layer anti-corrosive primer, two layers of top coats; Our paint is polyurethane paint, it has a strong paint film, full gloss, strong adhesion, water resistance, wear resistance, corrosion resistance.We can guarantee that the paint is not removing 6~7 years .

Main specification - TITAN 100 Ton Lowbed Trailer 4 Axles

Brand: 100 Ton Lowbed Trailer with side wall

Overall dimension: 16000mm X 2500mm X 2200mm

Loading capacity: 100 ton

Axle: 4 axles

Suspension: Heavy duty mechanical spring suspension

Tire: 16units

Landing gear: JOST

Brake system: WABCO

King pin: 90#

Electical system: 24V, LED lights
